Forum 3 Electrostatic Force Calculations

Forum 3 Electrostatic Force

Forum 3 Electrostatic Force

by Puleng Ramoshebi -
Number of replies: 4



a)      A charge  qA    with +2.3µC is located on the y-axis at y = +2.4m and charge qB     with -3.2µC is located at the origin. The third charge qC    with + 4.5µC, be at point (+1.8m,0 ).



i)                    What is the net electric Force F at  B.                                               (10)

ii)                  Calculate the electric Field E exerted by B on C only.                     (2)

                        Find both the y and the x components of force FBC.                         (2,1,1)


In reply to Puleng Ramoshebi

Re: Forum 3 Electrostatic Force

by LEMPE MARAISANE -

Electrostatic

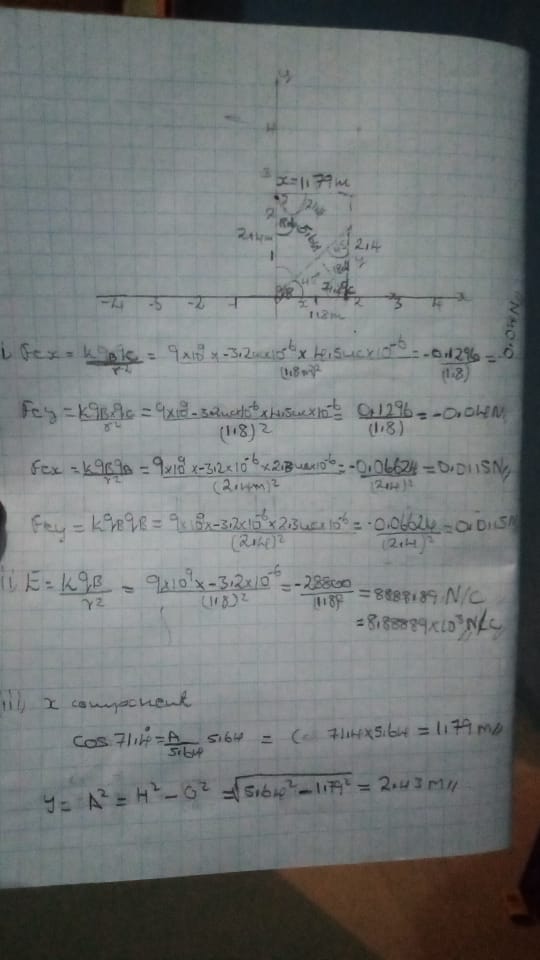

Attachment Electrostatic .jpg
In reply to LEMPE MARAISANE

Re: Forum 3 Electrostatic Force

by Puleng Ramoshebi -
The line between qc and qb is not necessary for now. The question wants the attractive force between qb and qa, which is an arrow facing upwards from qb .

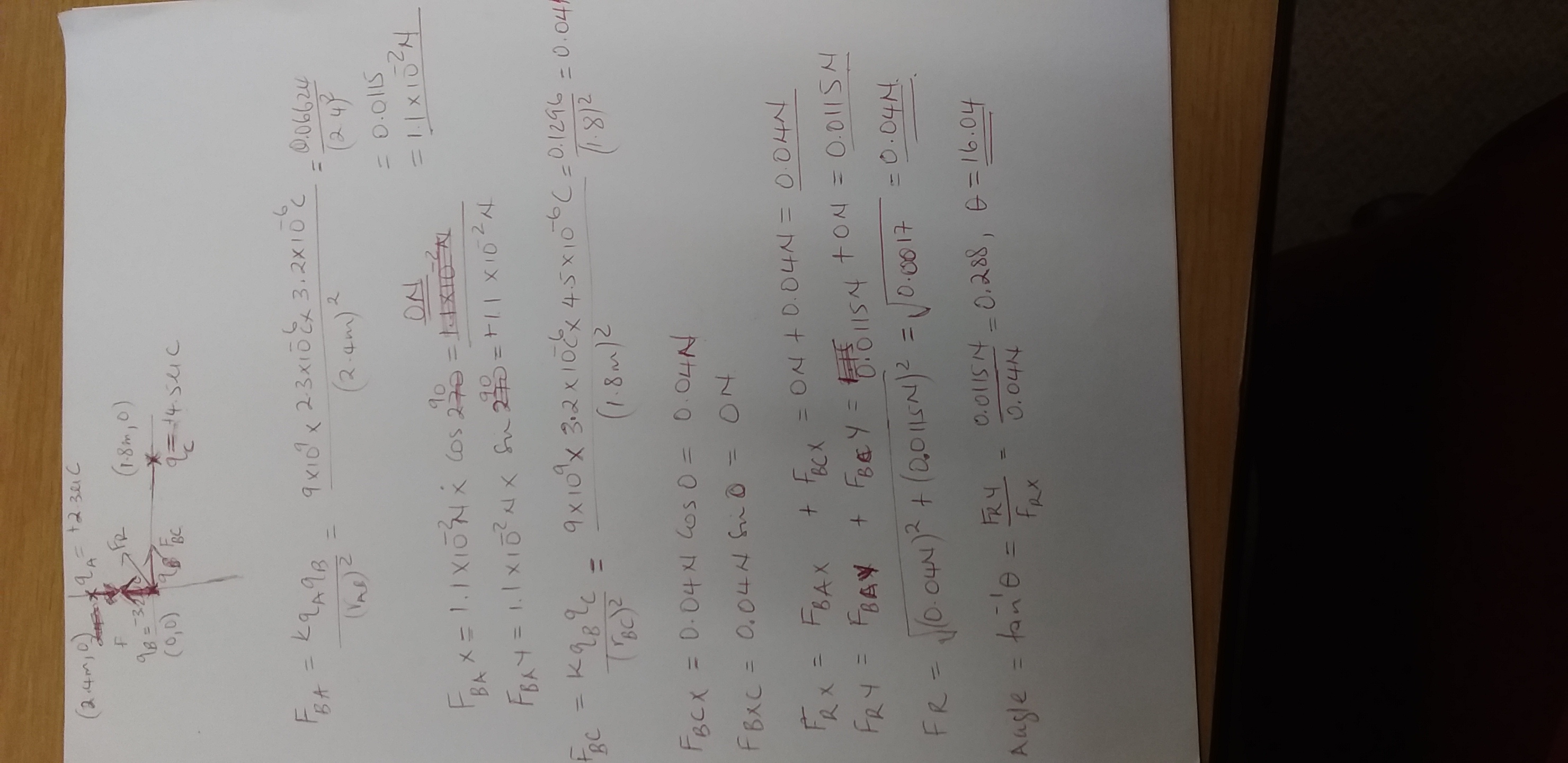

The attractive force between qb and qc is an arrow facing outward from qb to qc. check my diagram from Rathebe"s answer.
